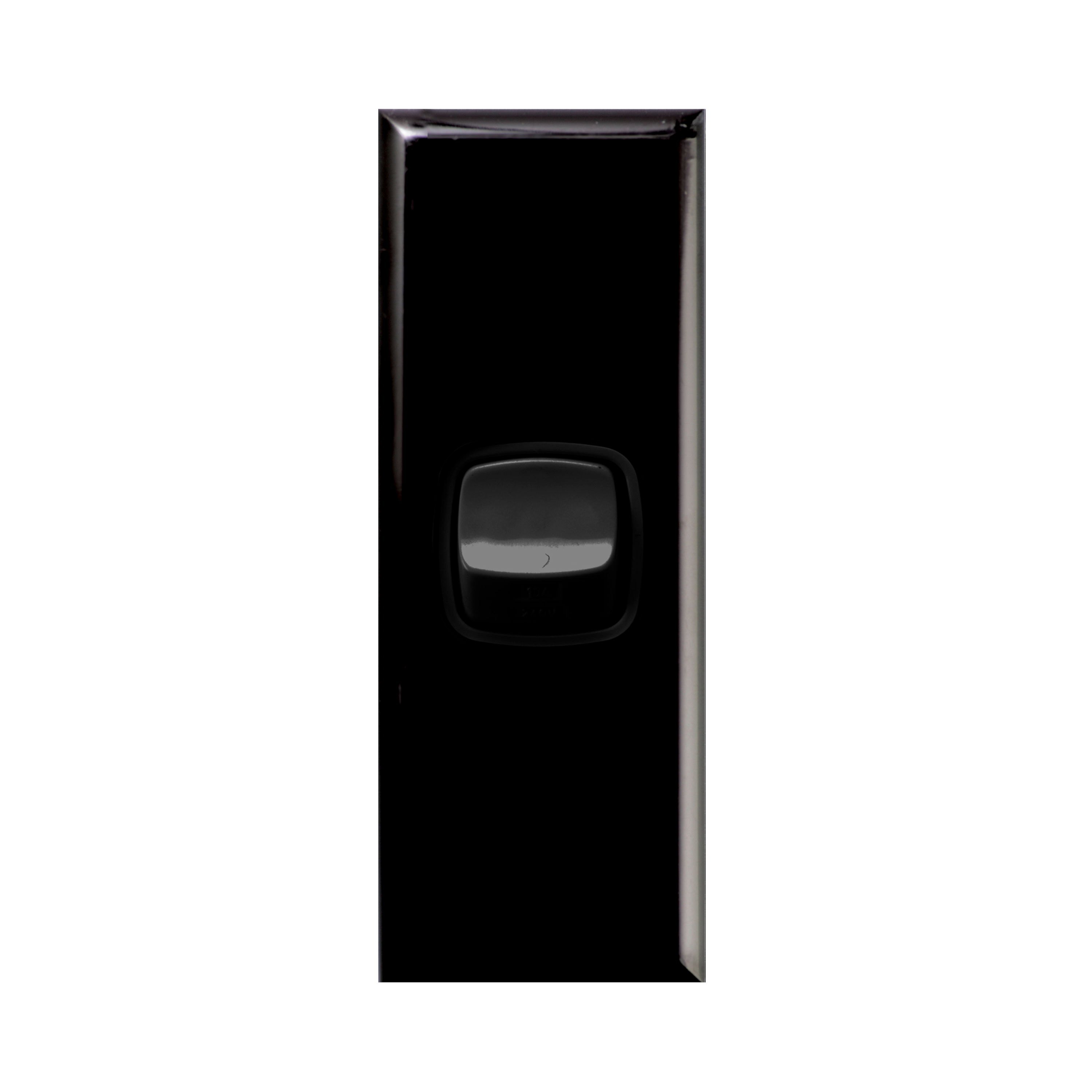

HPM Excel 10A 1 Gang Single Pole Double Throw Architrave Rocker Switch Black

Excel HPM

HPM Excel 10A 1 Gang Single Pole Double Throw Architrave Rocker Switch Black

REF. XLA770/1BL Barcode. 9321001123248
1 Year Warranty
Download product sheet
You can compare up to 4 products
Features
  • 1 Gang architrave Switch
  • 10A 240V a.c.
  • Plate Size: 35mm x 84mm
  • Mounting Centres 70mm
User Recommendations
  • Cut-out size: 96 x 56 mm
Overview
HPM Architrave rocker switch 1 gang to fit narrow palces such as door frames. Made from a durable material with classic design that suit all kind of interior. Award-winning, Excel was the first range to feature interchangeable coverplates. Available in a wide choice of sizes, colours and finishes, the snap-on cover plates can be quickly and safely changed that save time. Painting is very easy because you can take the coverplate off and paint right up to the edges.

Technical Specifications

Number of rockers 1
Mounting method Surface mounted
Material Plastic
Colour Black
Colour of switch operator Black
Nominal voltage 240 V
Device width 73 mm
Device height 117 mm
Device depth 35 mm
