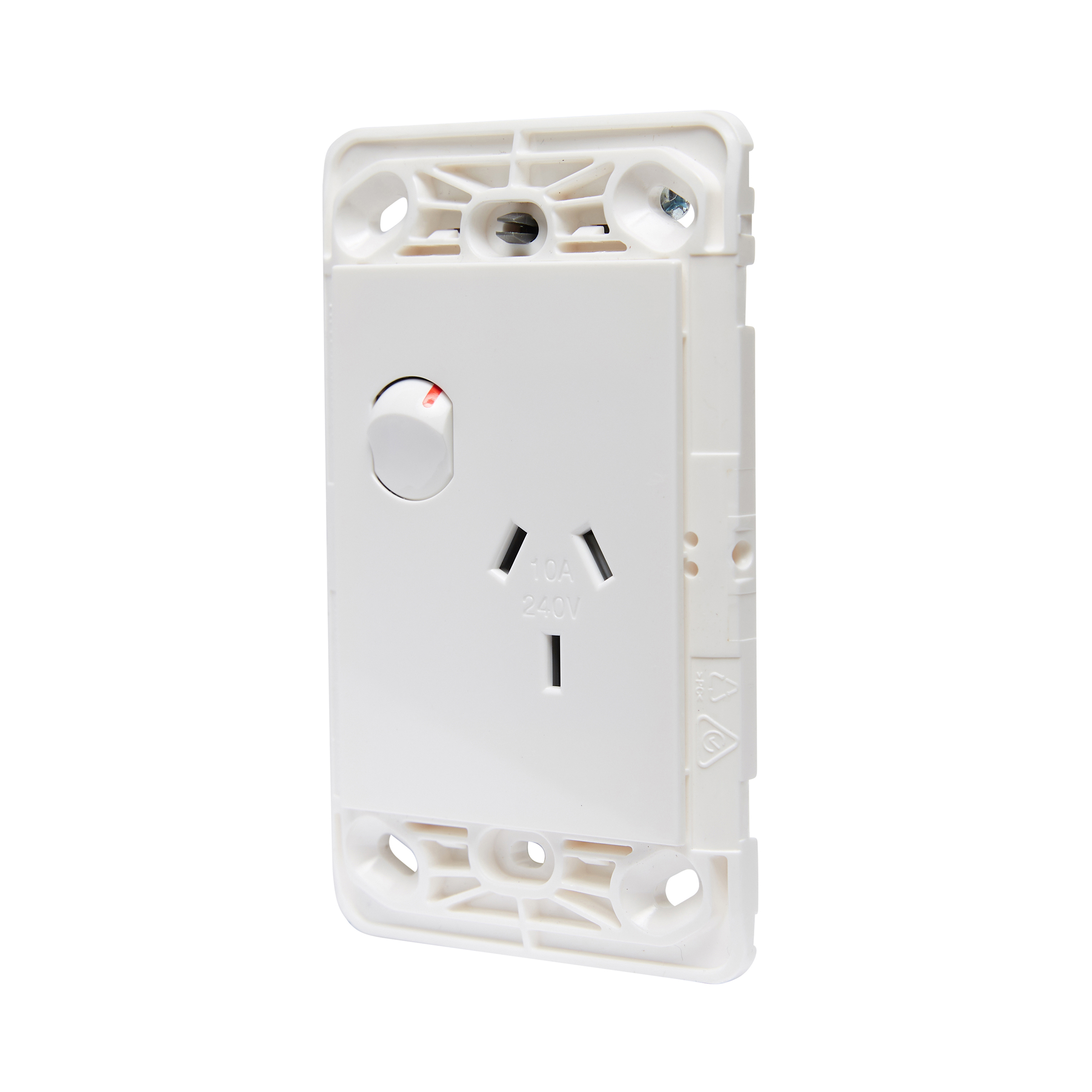

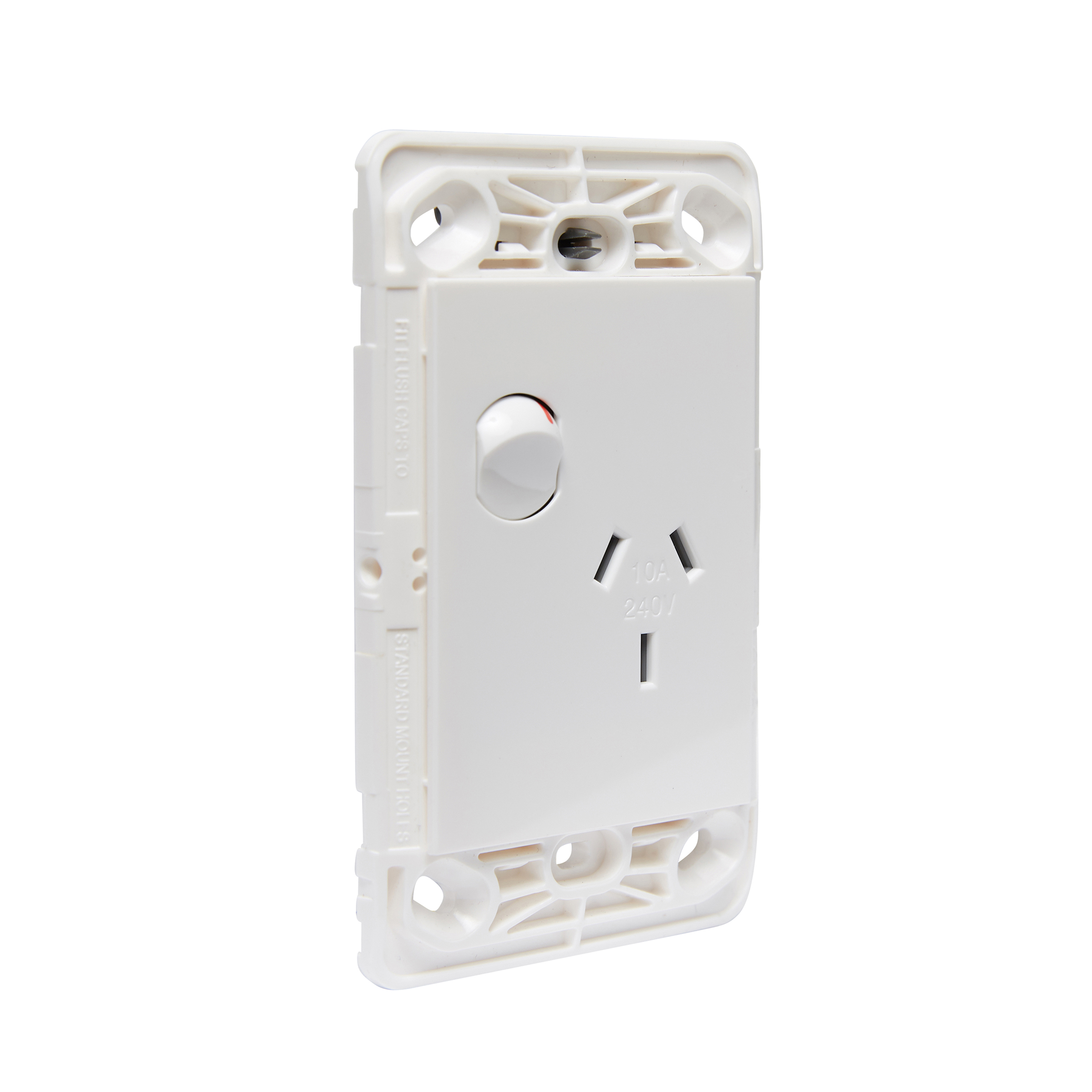

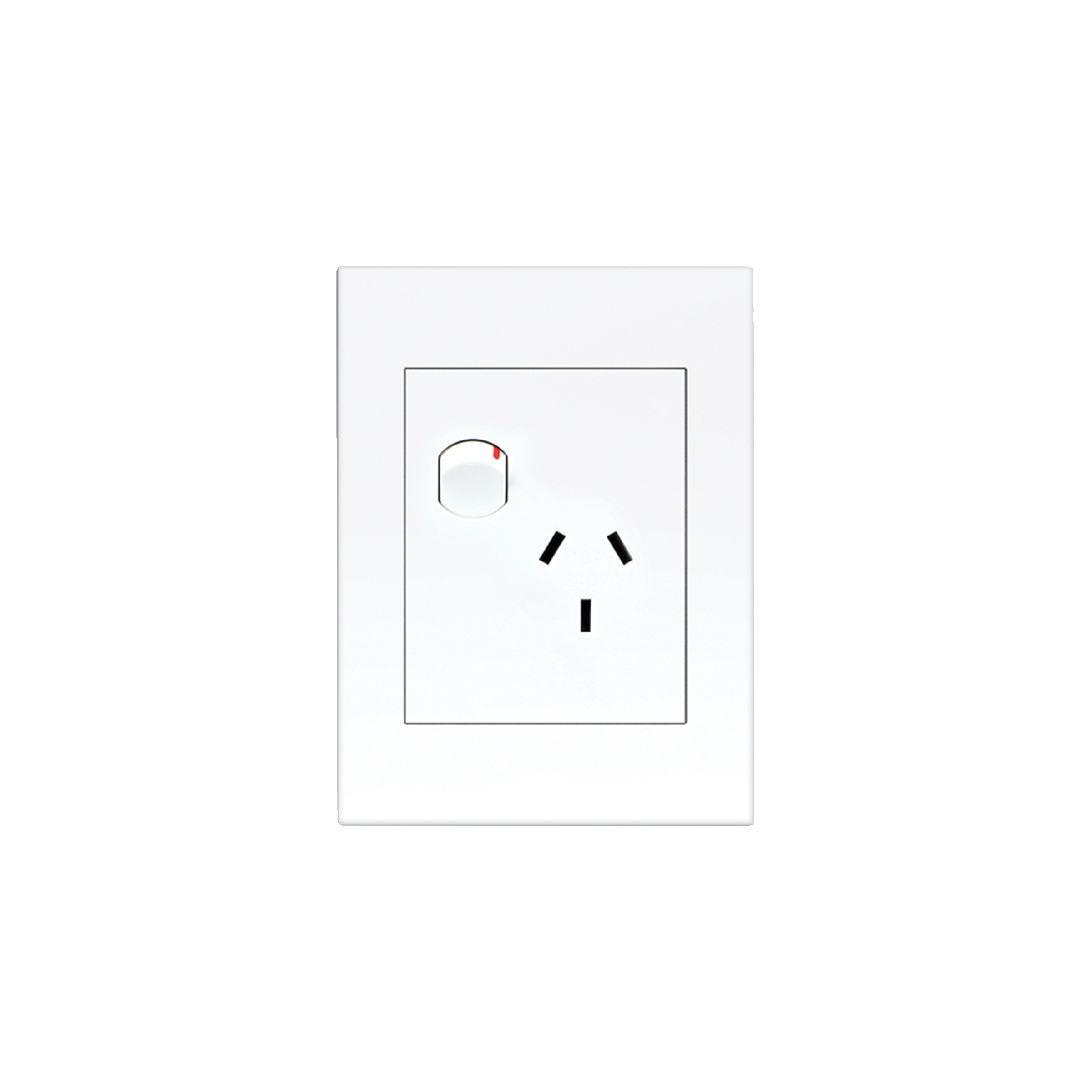

HPM Vivo 10A Vertical Single Power Point White

Vivo HPM

HPM Vivo 10A Vertical Single Power Point White

REF. EVV787WE Barcode. 9321001465287
1 Year Warranty
Download product sheet
You can compare up to 4 products
Features
  • Safety shutters for maximum safety of end-user

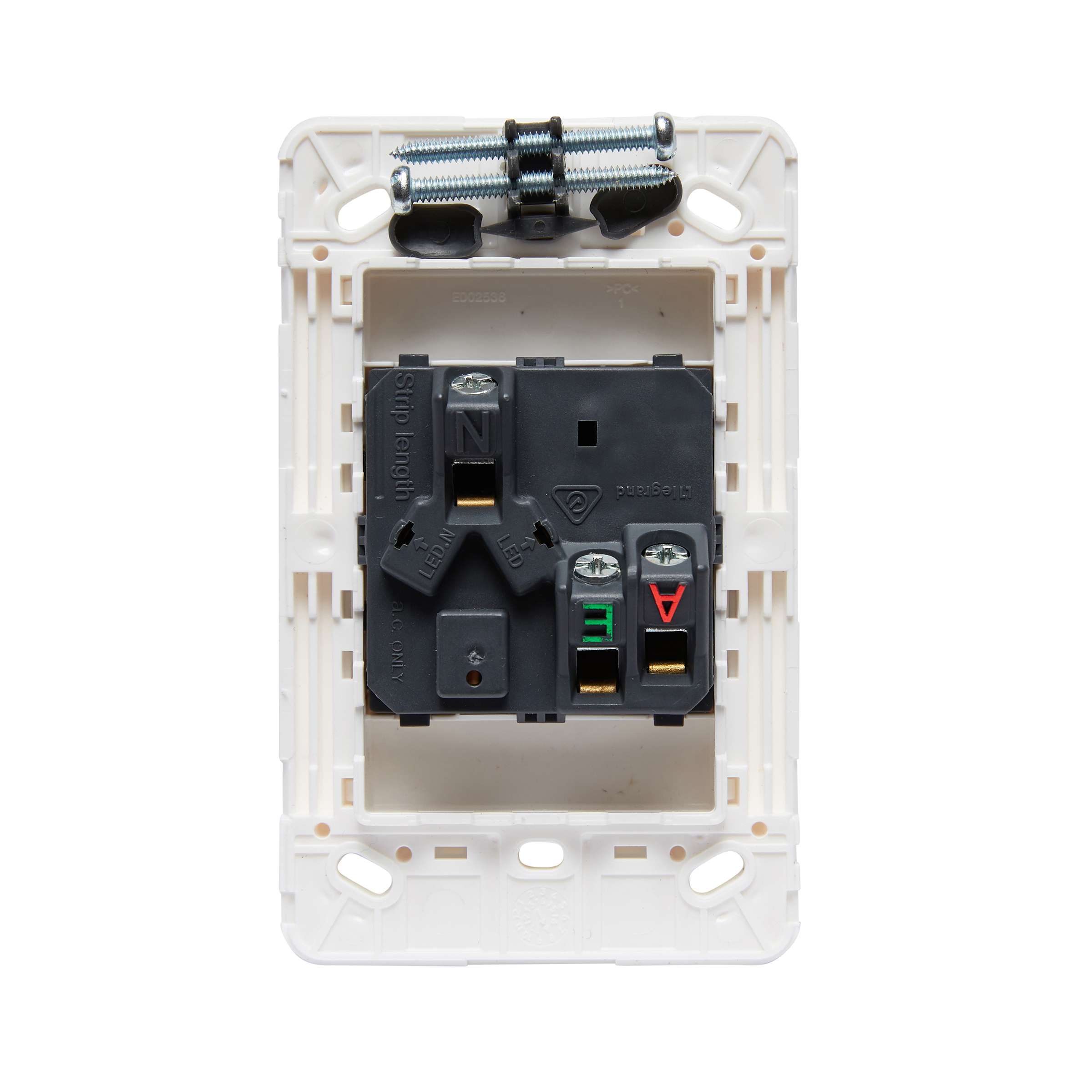

  • Inline terminals for easier installation
  • Retained terminal screws
  • Includes common coverplate that is interchangable with the 14 colour finishes of the Vivo range
User Recommendations
  • Suitable for all commercial and residential installations such as kitchens, bedrooms, offices, retail, hospitality and education facilities
  • Cut-out size: 56 x 96mm
Overview
The HPM Vivo 10A Vertical Single Power Point is an ideal way to enhance both the style and functionality of your home. Its sleek, square design seamlessly blends with any decor, while the interchangeable coverplate lets you personalise it to your preference. Equipped with internal safety shutters for added protection and captive terminal screws for easy installation, this power point combines safety and convenience effortlessly.

Quality You Can Trust

Installation
  • Oval 84mm fixing points - making it easier to adjust when installing
Unique Characteristics
  • Customise to suit your tastes and your interior with the coloured coverplate options (sold separately)

Technical Specifications

Type of switch Two-way switch
Type of socket outlet Australian standard AS/NZS 3112 (type I)
Number of socket outlets 1
Method of operation Rocker/button
Mounting direction Vertical
Mounting method Surface mounted
Material Plastic
Colour White
Nominal voltage 240 V
Rated current 10 A
Device width 86 mm
Device height 120 mm
Device depth 30 mm
Voltage type AC
