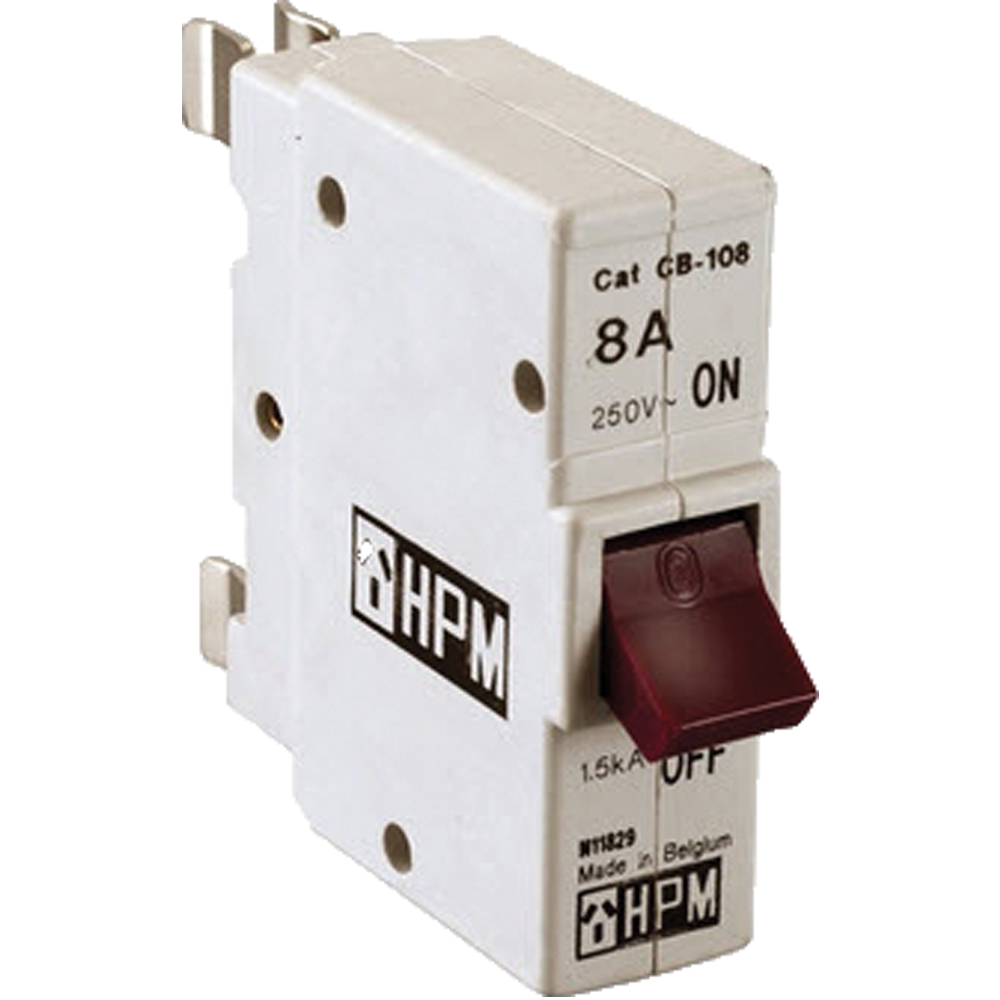

HPM 1P 8A 6kA 1 Module Miniature Circuit Breaker

HPM

HPM 1P 8A 6kA 1 Module Miniature Circuit Breaker

REF. CDCB108 Barcode. 9310539909004
1 Year Warranty
Download product sheet
You can compare up to 4 products
Features
  • 8 Amp plug-in circuit breaker for 8A & 10A lighting circuits
  • Designed to replace re-wireable fuse wedges in porcelain fuse bases
  • Over current and short circuit protection
  • Breaking capacity: 1,5kA
  • Magnetic threshold setting 5 to 10x In
Overview
A circuit breaker is simply a high tech fuse. It cuts off the power if a circuit is overloaded (too many electrical appliances being used), or shirt circuited (a faulty appliance). Plug in circuit breakers are more reliable and have a faster response time then standard rewireable fuses. Once installed, they do not require any tools to be reset, simply switch back on once the fault has been fixed.

Quality You Can Trust

Installation

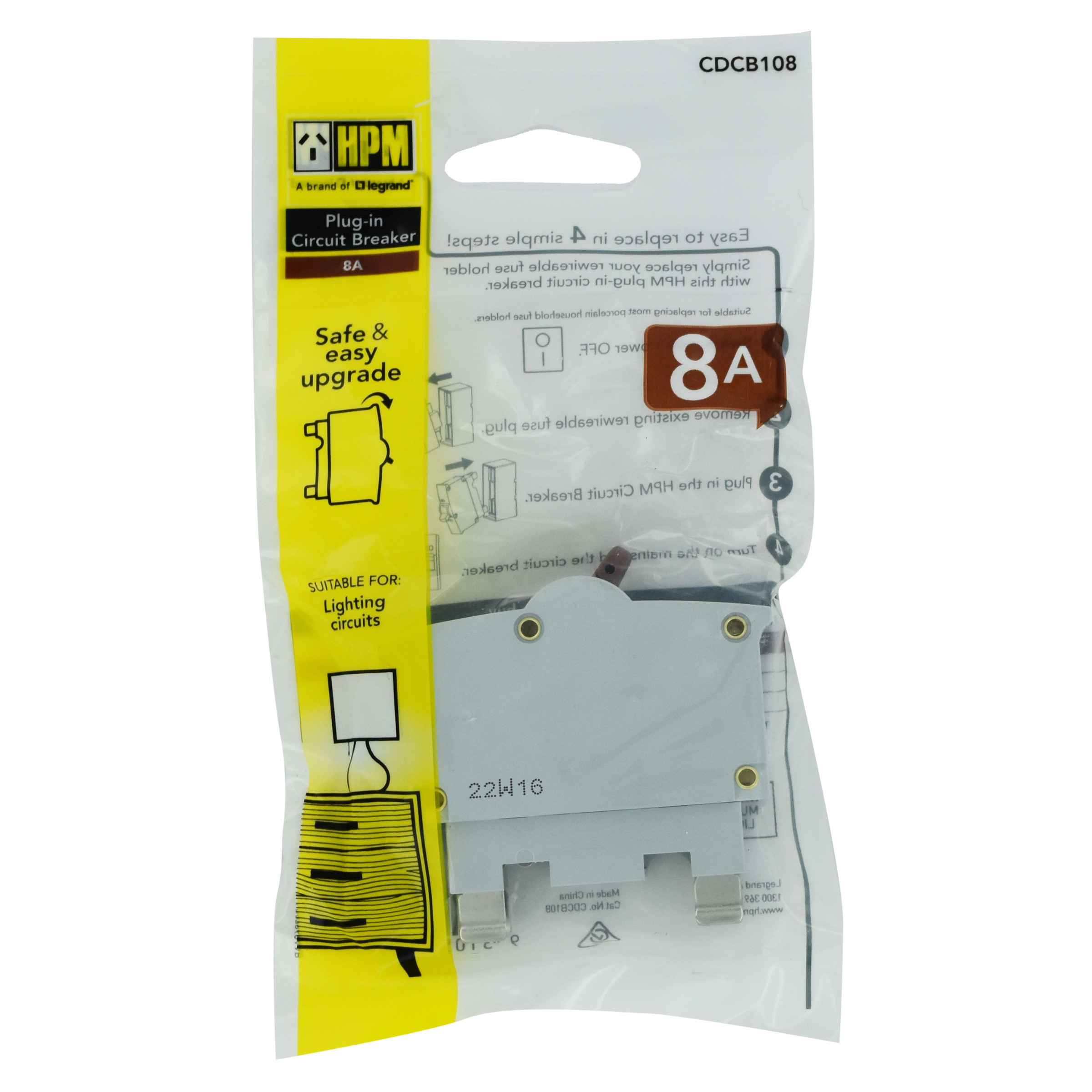

  • Easy 4 step replacement - Switch main power OFF; Remove existing rewireable fuse plug; Plug in the HPM Cirbuit Breaker; Turn on the mains and the circuit breaker
Convenient Functionality
  • Immediately cuts off power in the case of short circuit and overload
